FHFV-Si50-G
Artikel-Nr.: 6-10-50H24-7
LED Coaxial Light - SMD
6-10-50H24-7 FHFV-Si50-G LED Coaxial Light - SMD 1 FHFV-Si50.svg green (525 nm) green.svg 24 58.8
Technische Daten
| Lichtfarbe/Wellenlänge |
green (525 nm)
|
| Stromstärke | 2.45 A |
| Leistung | 58.8 W |
| Spannung | 24 V |
Illumination
| Operating Voltage: | 24 V |
| Current: | 2.45 A |
| Power Consumption: | 58.8 W |
| Voltage: | Continuous = 24V Pulsing 24-48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | RG-2 (Moderate Risk):Caution, do not stare at exposed lamp in operation. May be harmful for eyes |
| IP Rating: | N/A |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
Mechanical
| Housing: | Aluminium |
| Cable: | 540 mm |
| Weight: | Approx. 260 g |
LED
| LED Color: |
green (525 nm) |
| LED Package: | SMD |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 49 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes approx. 45°C |
| Cooling Method: | Attached to machine part for better heat dissipation |
| Working Distance: | 1 - 30 mm |

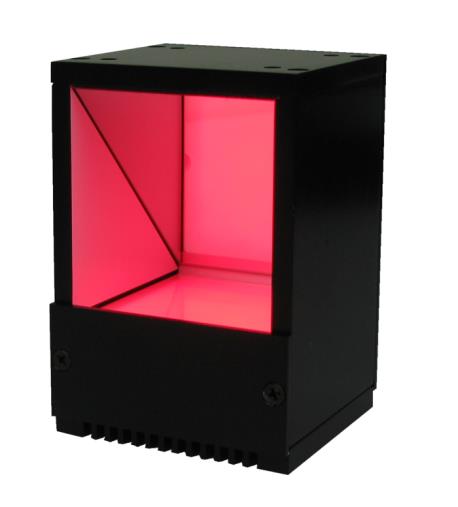

Produktbild
