FHDL-Si24x15N-IR24
Artikel-Nr.: 6-5-2415H24-55
High Brightness Bar Light ** Strobe Mode Only **
6-5-2415H24-55 FHDL-Si24x15N-IR24 High Brightness Bar Light ** Strobe Mode Only ** 1 FHDL-Si24x15N.svg IR (850 nm) ir.svg 24 3.6
Technische Daten
| Lichtfarbe/Wellenlänge |
IR (850 nm)
|
| Stromstärke | 0.15 A |
| Leistung | 3.6 W |
| Spannung | 24 V |
Illumination
| Operating Voltage: | 24 V |
| Current: | 0.15 A |
| Power Consumption: | 3.6 W |
| Voltage: | Continuous = 24V Pulsing 48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | RG 1 |
| IP Rating: | IP 40 |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
Mechanical
| Housing: | Aluminium |
| Cable: | 540 mm |
| Weight: | Approx. 90 g |
LED
| LED Color: |
IR (850 nm) |
| LED Package: | High Power SMD |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 8 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | Lighting casing temperature, operating after 60 min. 54 °C |
| Cooling Method: | Attached to machine part for better heat dissipation |
| Working Distance: | 0-100 mm |

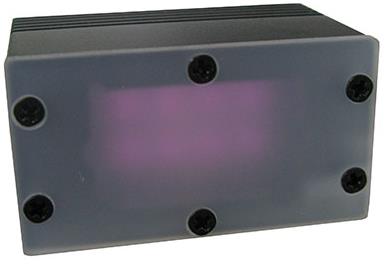

Produktbild
