FHDL-Si24x15N-UV12
Artikel-Nr.: 6-5-2415H12-00-365
High Brightness Bar Light UV 365
6-5-2415H12-00-365 FHDL-Si24x15N-UV12 High Brightness Bar Light UV 365 1 FHDL-Si24x15N-UV.svg UV (365 nm) uv.svg 12 6
Technische Daten
| Lichtfarbe/Wellenlänge |
UV (365 nm)
|
| Stromstärke | 0.5 A |
| Leistung | 6 W |
| Spannung | 12 V |
Illumination
| Operating Voltage: | 12 V |
| Current: | 0.5 A |
| Power Consumption: | 6 W |
| Voltage: | Continuous = 12V Pulsing 12-24V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | RG-2 (Moderate Risk):Caution, do not stare at exposed lamp in operation. May be harmful for eyes |
| IP Rating: | N/A |
| Connector: | JST SMR-02V |
| Connector Pin: | Pin 1: + Pin 2: - |
| Reverse Battery Protection: | yes |
Mechanical
| Housing: | Aluminium |
| Cable: | 540 mm |
| Weight: | Approx. 90 g |
LED
| LED Color: |
UV (365 nm) |
| LED Package: | SMD |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 2 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | Approx. 49°C |
| Cooling Method: | Attached to large machine part |
| Working Distance: | 0-100 mm |

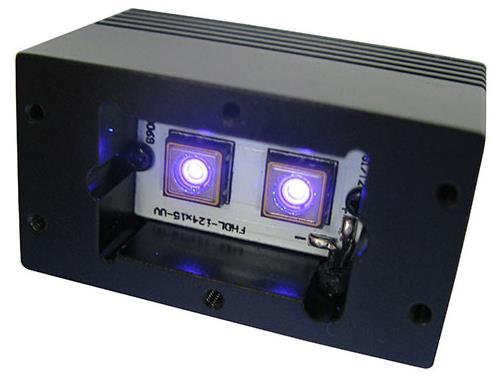

Produktbild
