FHDL-TP-Si200x100-R24
Artikel-Nr.: 6-4-200100H24-05
LED High Brightness Diffuse Back Light red 660 nm, with SPNova LED
6-4-200100H24-05 FHDL-TP-Si200x100-R24 LED High Brightness Diffuse Back Light red 660 nm, with SPNova LED 1 FHDL-TP-Si200x100.svg red (660 nm) red24.svg 24 48
Technische Daten
| Lichtfarbe/Wellenlänge |
red (660 nm)
|
| Stromstärke | 2 A |
| Leistung | 48 W |
| Spannung | 24 V |
Illumination
| Operating Voltage: | 24 V |
| Current: | 2 A |
| Power Consumption: | 48 W |
| Voltage: | Continuous = 24V Pulsing 48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | RG 1 |
| IP Rating: | N/A |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
Mechanical
| Housing: | Aluminium |
| Cable: | 540 mm |
| Weight: | Approx. 1065 g |
LED
| LED Color: |
red (660 nm) |
| LED Package: | SMD |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 45 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes approx. 70°C |
| Cooling Method: | Attached to machine part for better heat dissipation |
| Working Distance: | 5-100 mm |

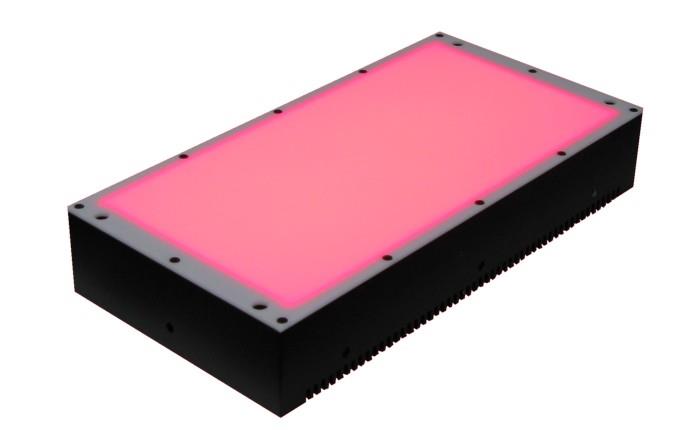

Produktbild
