FHLN-Si300-W
Artikel-Nr.: 6-15-300H24-0
LED High Brightness Line Light
6-15-300H24-0 FHLN-Si300-W LED High Brightness Line Light 1 FHLN-Si300.svg white (xy=(0.31,0.32) white.svg 24 50.4
Technische Daten
| Lichtfarbe/Wellenlänge |
white (xy=(0.31,0.32)
|
| Stromstärke | 2.1 A |
| Leistung | 50.4 W |
| Spannung | 24 V |
Illumination
| Operating Voltage: | 24 V |
| Current: | 2.1 A |
| Power Consumption: | 50.4 W |
| Voltage: | Continuous = 24V Pulsing 24-40V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | RG-2 (Moderate Risk):Caution, do not stare at exposed lamp in operation. May be harmful for eyes |
| IP Rating: | N/A |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
Mechanical
| Housing: | Aluminium |
| Cable: | 600 mm |
| Weight: | 1100 g |
LED
| LED Color: |
white (xy=(0.31,0.32) |
| LED Package: | High Power SMD |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 42 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes with compress air cooling 55°C (without 75°C) |
| Cooling Method: | Attached to machine part for better heat dissipation |
| Working Distance: | 20-100 mm |

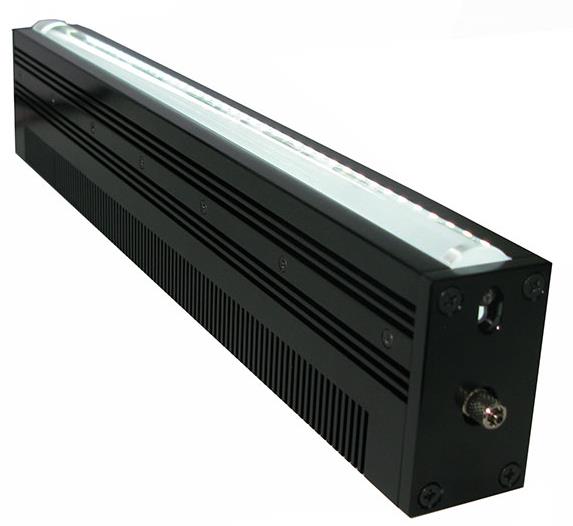

Produktbild
