FHLN-Si400-W
Artikel-Nr.: 6-14-400H24-0
LED High Brightness Line Light
6-14-400H24-0 FHLN-Si400-W LED High Brightness Line Light 1 FHLN-Si400.svg white (xy=(0.31,0.32) white.svg 24 67.2
Technische Daten
| Lichtfarbe/Wellenlänge |
white (xy=(0.31,0.32)
|
| Stromstärke | 2.8 A |
| Leistung | 67.2 W |
| Spannung | 24 V |
Illumination
| Operating Voltage: | 24 V |
| Current: | 2.8 A |
| Power Consumption: | 67.2 W |
| Voltage: | Continuous = 24V Pulsing 24-40V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | Exempt Group |
| IP Rating: | IP 50 |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
Mechanical
| Housing: | Aluminium |
| Cable: | 600 mm |
| Weight: | 1260g |
LED
| LED Color: |
white (xy=(0.31,0.32) |
| LED Package: | SMD |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 56 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes with compress air cooling 60°C (without 75°C) |
| Cooling Method: | Attached to machine part for better heat dissipation |
| Working Distance: | 20-100 mm |

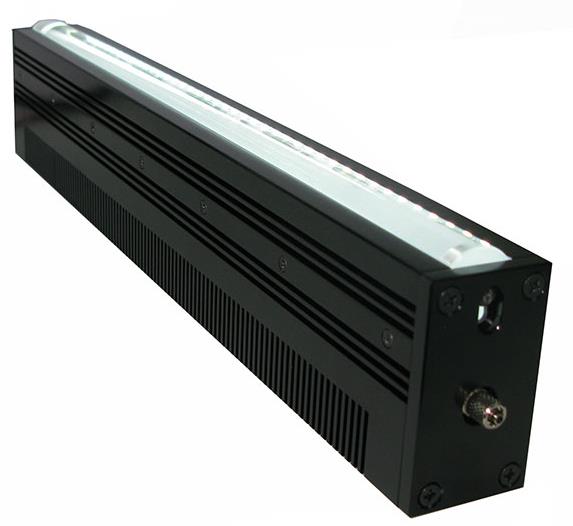

Produktbild
