FHLV-Si27N2-R-CONT
Artikel-Nr.: 6-12-27H12-5-CONT
LED High Luminosity Spot Light without Resistor inside, for use on constant current source Resistor FRB-i27C is mounted on the cable. red | 12 V | 0.77 W | 0.35 A ** Continuous Mode **
6-12-27H12-5-CONT FHLV-Si27N2-R-CONT LED High Luminosity Spot Light without Resistor inside, for use on constant current source Resistor FRB-i27C is mounted on the cable. red | 12 V | 0.77 W | 0.35 A ** Continuous Mode ** 1 FHLV-Si27N2.svg red (630 nm) red.svg 12 0.77
Technische Daten
| Lichtfarbe/Wellenlänge |
red (630 nm)
|
| Stromstärke | 0.35 A |
| Leistung | 0.77 W |
| Spannung | 12 V |
Illumination
| Operating Voltage: | 12 V |
| Current: | 0.35 A |
| Power Consumption: | 0.77 W |
| Voltage: | Continuous = 12V Pulsing 12-24V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | RG-2 (Moderate Risk):Caution, do not stare at exposed lamp in operation. May be harmful for eyes |
| IP Rating: | IP 50 |
| Connector: | JST SMR-02V |
| Connector Pin: | Pin 1: + Pin 2: - |
| Reverse Battery Protection: | yes |
Mechanical
| Housing: | Aluminium |
| Cable: | 540 mm |
| Weight: | 50 g |
LED
| LED Color: |
red (630 nm) |
| LED Package: | High Power SMD |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 1 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes approx. 35°C |
| Cooling Method: | Attached to machine part for better heat dissipation |
| Working Distance: |

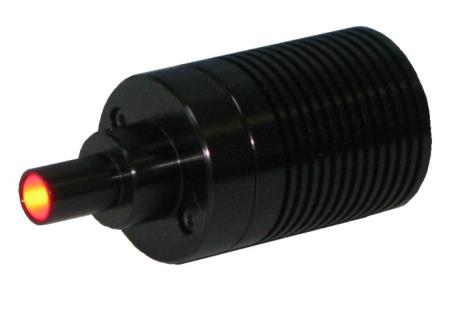

Produktbild
