FHSP-Si60N-IP67-B
Artikel-Nr.: 6-12-60N67H24-4
LED High Brightness Spot Light The new type has a build in resistor!
6-12-60N67H24-4 FHSP-Si60N-IP67-B LED High Brightness Spot Light The new type has a build in resistor! 1 FHSP-Si60N-IP67.svg blue (470 nm) blue.svg 24 8.4
Technische Daten
| Lichtfarbe/Wellenlänge |
blue (470 nm)
|
| Stromstärke | 0.35 A |
| Leistung | 8.4 W |
| Spannung | 24 V |
Illumination
| Operating Voltage: | 24 V |
| Current: | 0.35 A |
| Power Consumption: | 8.4 W |
| Voltage: | Continuous = 24V Pulsing 48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | RG-2 (Moderate Risk):Caution, do not stare at exposed lamp in operation. May be harmful for eyes |
| IP Rating: | IP 67 |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
Mechanical
| Housing: | Aluminium |
| Cable: | 300 mm |
| Weight: | 340 g |
LED
| LED Color: |
blue (470 nm) |
| LED Package: | High Power SMD |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 7 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | Approx. 53 °C |
| Cooling Method: | Attached to large machine part |
| Working Distance: | max. 10 - 3000 mm |

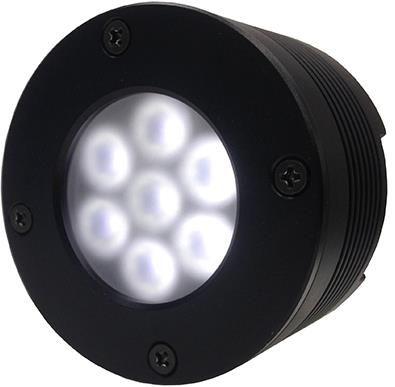

Produktbild
