FLDL-Si56x15-UV24
Artikel-Nr.: 6-5-5624-00-365
LED Bar Light UV UV-375 (375 nm) and UV-400 (400 nm) possible
6-5-5624-00-365 FLDL-Si56x15-UV24 LED Bar Light UV UV-375 (375 nm) and UV-400 (400 nm) possible 1 FLDL-Si56x15-UV.svg UV (375 nm) uv.svg 24 1.44
Technische Daten
| Lichtfarbe/Wellenlänge |
UV (375 nm)
|
| Stromstärke | 0.06 A |
| Leistung | 1.44 W |
| Spannung | 24 V |
Illumination
| Operating Voltage: | 24 V |
| Current: | 0.06 A |
| Power Consumption: | 1.44 W |
| Voltage: | Continuous = 24V Pulsing 48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | RG-3 (High Risk): Caution. Do not look at exposed lamp in operation. Eye injury can result. |
| IP Rating: | N/A |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | no |
Mechanical
| Housing: | Metal |
| Cable: | 300 mm |
| Weight: | Approx. 45 g |
LED
| LED Color: |
UV (375 nm) |
| LED Package: | SMD |
| LED Life Span Strobe: | Est. >10,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 5,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 21 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes approx. 42°C |
| Cooling Method: | Attached to large machine part |
| Working Distance: | 0 - 100 mm |

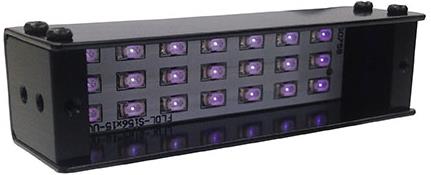

Produktbild
