FLDL-TP-Si400x300-C50-IR24
Artikel-Nr.: 6-4-40030024-C50-55
LED High Brightness Diffuse Back Light -C50 with center hole 50 mm
6-4-40030024-C50-55 FLDL-TP-Si400x300-C50-IR24 LED High Brightness Diffuse Back Light -C50 with center hole 50 mm 1 FLDL-TP-Si400x300-C50-IR24.svg IR (850 nm) ir.svg 24 81.6
Technische Daten
| Lichtfarbe/Wellenlänge |
IR (850 nm)
|
| Stromstärke | 3.4 A |
| Leistung | 81.6 W |
| Spannung | 24 V |
Illumination
| Operating Voltage: | 24 V |
| Current: | 3.4 A |
| Power Consumption: | 81.6 W |
| Voltage: | Continuous = 24V Pulsing 48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | Exempt Group |
| IP Rating: | N/A |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
Mechanical
| Housing: | Aluminium |
| Cable: | 600 mm |
| Weight: | 3248 |
LED
| LED Color: |
IR (850 nm) |
| LED Package: | SMD |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 2176 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes approx. 47°C |
| Cooling Method: | Attached to large machine part |
| Working Distance: | 5-100 mm |

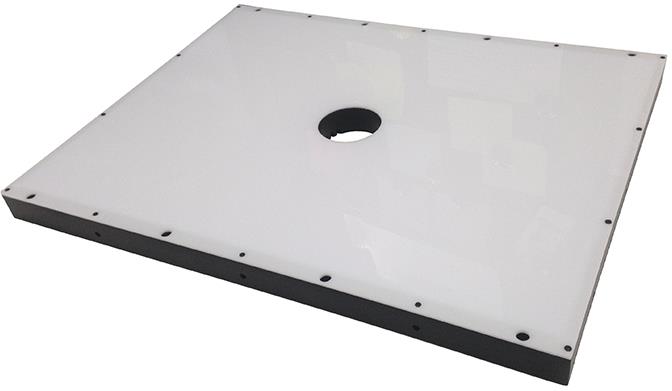

Produktbild
