FLDL-TP-Si51-RGB
Artikel-Nr.: 6-4-51224-RGB
LED High Brightness Back Light Multicolor. Each colour separate controlled. Each SMD-LED in RGB. red (635 nm), green (525 nm) and blue (470 nm) Continuous current: R = 1.92 W | 0.08 A G = 2.88 W | 0.12 A B = 2.88 W | 0.12 A Total power (R+G+B): 24V | 7.368W
6-4-51224-RGB FLDL-TP-Si51-RGB LED High Brightness Back Light Multicolor. Each colour separate controlled. Each SMD-LED in RGB. red (635 nm), green (525 nm) and blue (470 nm) Continuous current: R = 1.92 W | 0.08 A G = 2.88 W | 0.12 A B = 2.88 W | 0.12 A Total power (R+G+B): 24V | 7.368W 1 FLDL-TP-Si51-RGB.svg RGB rgb.svg 24 7.68
Technische Daten
| Lichtfarbe/Wellenlänge |
RGB
|
| Stromstärke | 0.7 A |
| Leistung | 7.68 W |
| Spannung | 24 V |
Illumination
| Operating Voltage: | 24 V |
| Current: | 0.7 A |
| Power Consumption: | 7.68 W |
| Voltage: | Continuous = 24V Pulsing 48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | Exempt Group |
| IP Rating: | N/A |
| Connector: | 3 x SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
Mechanical
| Housing: | Aluminium |
| Cable: | 450 mm |
| Weight: | Approx. 454 g |
LED
| LED Color: |
RGB |
| LED Package: | SMD |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 124 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes approx. 52°C |
| Cooling Method: | Attached to large machine part |
| Working Distance: | 50-100 mm |

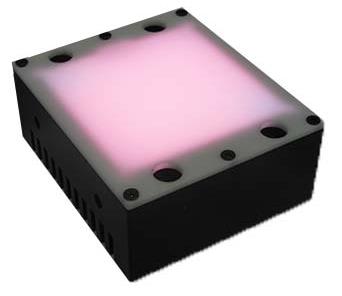

Produktbild
