FLDL-i300x15-SR
Artikel-Nr.: 6-5-300S12-5
LED Bar Light
6-5-300S12-5 FLDL-i300x15-SR LED Bar Light 1 FLDL-i300x15.svg SR (626 nm) sr.svg 12 7.2
Technische Daten
| Lichtfarbe/Wellenlänge |
SR (626 nm)
|
| Stromstärke | 0.6 A |
| Leistung | 7.2 W |
| Spannung | 12 V |
Illumination
| Operating Voltage: | 12 V |
| Current: | 0.6 A |
| Power Consumption: | 7.2 W |
| Voltage: | Continuous = 12V Pulsing 12-24V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | Exempt Group |
| IP Rating: | IP 30 |
| Connector: | JST SMR-02V |
| Connector Pin: | Pin 1: + Pin 2: - |
| Reverse Battery Protection: | yes |
Mechanical
| Housing: | Aluminium |
| Cable: | 300 mm |
| Weight: | Approx. 270 g |
LED
| LED Color: |
SR (626 nm) |
| LED Package: | T1 3mm |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 180 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes approx. 60°C |
| Cooling Method: | Attached to machine part for better heat dissipation |
| Working Distance: | 10-100 mm |

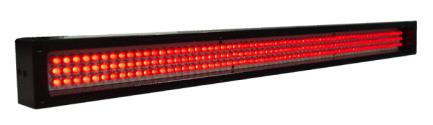

Produktbild
