FLLN-Si300-UV24-375
Artikel-Nr.: 6-14-30024-00-375
LED Line Light
6-14-30024-00-375 FLLN-Si300-UV24-375 LED Line Light 1 UV (375 nm) uv.svg 24 3.84
Technische Daten
| Lichtfarbe/Wellenlänge |
UV (375 nm)
|
| Stromstärke | 0.16 A |
| Leistung | 3.84 W |
| Spannung | 24 V |
Illumination
| Operating Voltage: | 24 V |
| Current: | 0.16 A |
| Power Consumption: | 3.84 W |
| Voltage: | Continuous = 24V Pulsing 48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | RG 3 |
| IP Rating: | IP 40 |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
Mechanical
| Housing: | Aluminium |
| Cable: | 600 mm |
| Weight: | Approx. 399 g |
LED
| LED Color: |
UV (375 nm) |
| LED Package: | SMD |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 56 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes approx. 34°C |
| Cooling Method: | Attached to large machine part |
| Working Distance: | 0 - 100 mm |

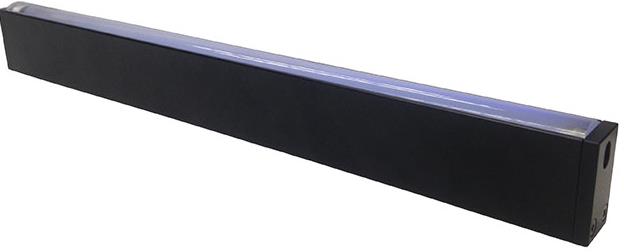

Produktbild
