FLLN-i1300-W-UPDATE-FOLLOWS
Artikel-Nr.: 6-14-130024-0
LED Line Light **Model is end of life - successor is FLLN-Si1300**
6-14-130024-0 FLLN-i1300-W-UPDATE-FOLLOWS LED Line Light **Model is end of life - successor is FLLN-Si1300** 1 FLLN-i1300.svg white (xy=0.31,0.32) white.svg 24 25.2
Technische Daten
| Lichtfarbe/Wellenlänge |
white (xy=0.31,0.32)
|
| Stromstärke | 1.05 A |
| Leistung | 25.2 W |
| Spannung | 24 V |
Illumination
| Operating Voltage: | 24 V |
| Current: | 1.05 A |
| Power Consumption: | 25.2 W |
| Voltage: | Continuous = 24V Pulsing 48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | Exempt Group |
| IP Rating: | IP 40 |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
Mechanical
| Housing: | Aluminium |
| Cable: | 1000 mm |
| Weight: | Approx. 3060 g |
LED
| LED Color: |
white (xy=0.31,0.32) |
| LED Package: | P4 |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 112 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes approx. 50°C |
| Cooling Method: | Attached to large machine part |
| Working Distance: | 10 - 100 mm |

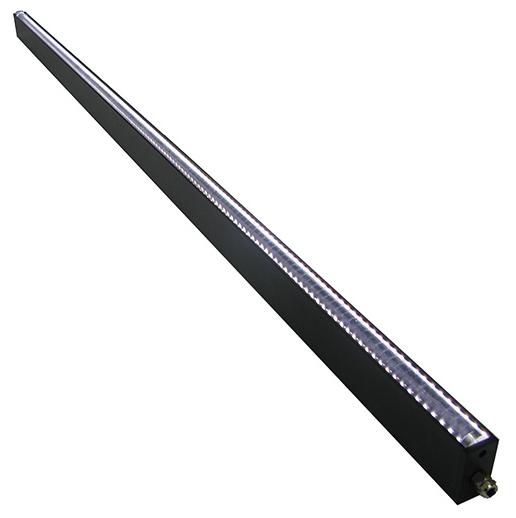

Produktbild
