FLLN-i300-R24-UPDATE-FOLLOWS
Artikel-Nr.: 6-14-3024-5
LED Line Light **Model is end of life - successor is FLLN-Si300**
6-14-3024-5 FLLN-i300-R24-UPDATE-FOLLOWS LED Line Light **Model is end of life - successor is FLLN-Si300** 1 FLLN-i300.svg red (xy = 0,7;0,299) red24.svg 24 4.8
Technische Daten
| Lichtfarbe/Wellenlänge |
red (xy = 0,7;0,299)
|
| Stromstärke | 0.2 A |
| Leistung | 4.8 W |
| Spannung | 24 V |
Illumination
| Operating Voltage: | 24 V |
| Current: | 0.2 A |
| Power Consumption: | 4.8 W |
| Voltage: | Continuous = 24V Pulsing 24-48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ± 5% V |
| Eye safety: | Exempt Group |
| IP Rating: | IP 40 |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
Mechanical
| Housing: | Aluminium |
| Cable: | 300 mm |
| Weight: | Approx. 420 g |
LED
| LED Color: |
red (xy = 0,7;0,299) |
| LED Package: | P4 |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 36 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | |
| Cooling Method: | Attached to machine part for better heat dissipation |
| Working Distance: | 10-100 mm |

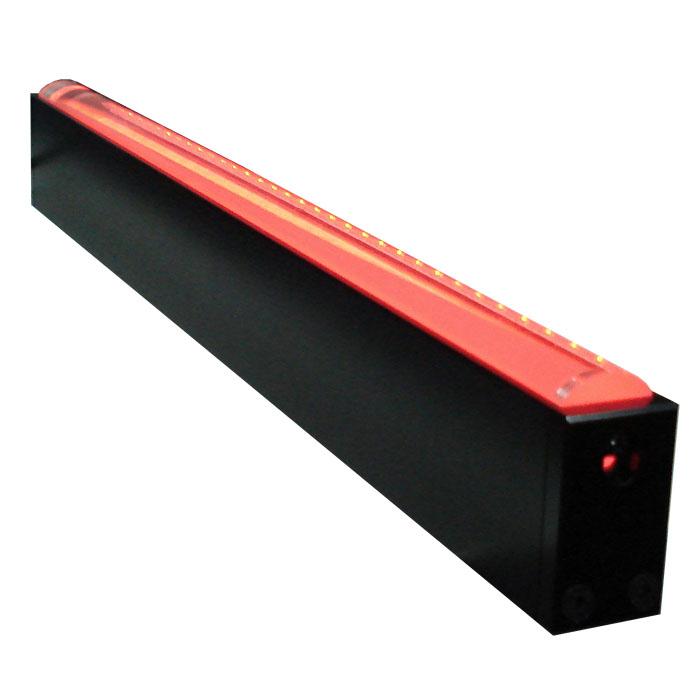

Produktbild
