FHDM-Si100-UV24
Artikel-Nr.: 6-8-100H24-00-365
LED Dome Light - High Brightness Only Strobe Control - max. Trigger Pulse Duration: 10 msec Only to use with constant current source controller For working with constant voltage mode, you need to use an external resistor (0,6 Ohm)
6-8-100H24-00-365 FHDM-Si100-UV24 LED Dome Light - High Brightness Only Strobe Control - max. Trigger Pulse Duration: 10 msec Only to use with constant current source controller For working with constant voltage mode, you need to use an external resistor (0,6 Ohm) 1 FHDM-Si100-UV24.svg UV (365 nm) uv.svg 24 48
Technische Daten
| Lichtfarbe/Wellenlänge |
UV (365 nm)
|
| Stromstärke | 2 A |
| Leistung | 48 W |
| Spannung | 24 V |
| Illumination Surface: | Ø80 mm |
| Illumination Inside Dimension: | 25 mm |
| Illumination Outside Diameter: | Ø130x62 mm |
Illumination
| Operating Voltage: | 24 V |
| Current: | 2 A |
| Power Consumption: | 48 W |
| Voltage: | No operation in continuous mode! Overheating! Pulsing 24-48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | RG-3 (High Risk): Caution. Do not look at exposed lamp in operation. Eye injury can result. |
| IP Rating: | N/A |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
| Illumination Surface: | Ø80 mm |
| Illumination Inside Dimension: | 25 mm |
| Illumination Outside Diameter: | Ø130x62 mm |
Mechanical
| Housing: | Aluminium |
| Cable: | 300 mm |
| Weight: | Approx. 255 g |
LED
| LED Color: |
UV (365 nm) |
| LED Package: | High Power SMD |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | |
| Number of LED | |
|---|---|
| Total Number of LED: | 24 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 30 minutesin strobe mode approx. 60°C |
| Cooling Method: | Attached to machine part |
| Working Distance: | 0-30 mm |

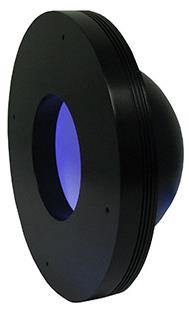

Produktbild
