FHDM-Si100-W
Artikel-Nr.: 6-8-100H24-0
LED Dome Light - High Brightness **continuous mode** Only to use with constant current source controller For working with constant voltage mode, you need to use an external resistor (2,1 Ohm)
6-8-100H24-0 FHDM-Si100-W LED Dome Light - High Brightness **continuous mode** Only to use with constant current source controller For working with constant voltage mode, you need to use an external resistor (2,1 Ohm) 1 FHDM-Si100.svg white (xy=(0.31,0.32) white.svg 24 19.2
Technische Daten
| Lichtfarbe/Wellenlänge |
white (xy=(0.31,0.32)
|
| Stromstärke | 0.8 A |
| Leistung | 19.2 W |
| Spannung | 24 V |
| Illumination Surface: | Ø80 mm |
| Illumination Inside Dimension: | 25 mm |
| Illumination Outside Diameter: | Ø130x64 mm |
Illumination
| Operating Voltage: | 24 V |
| Current: | 0.8 A |
| Power Consumption: | 19.2 W |
| Voltage: | No operation in continuous mode! Overheating! Pulsing 24-48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | RG-2 (Moderate Risk):Caution, do not stare at exposed lamp in operation. May be harmful for eyes |
| IP Rating: | N/A |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
| Illumination Surface: | Ø80 mm |
| Illumination Inside Dimension: | 25 mm |
| Illumination Outside Diameter: | Ø130x64 mm |
Mechanical
| Housing: | Aluminium |
| Cable: | 300 mm |
| Weight: | Approx. 220 g |
LED
| LED Color: |
white (xy=(0.31,0.32) |
| LED Package: | High Power SMD |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 28 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes approx. 60°C |
| Cooling Method: | Attached to machine part for better heat dissipationt |
| Working Distance: | 0-30 mm |

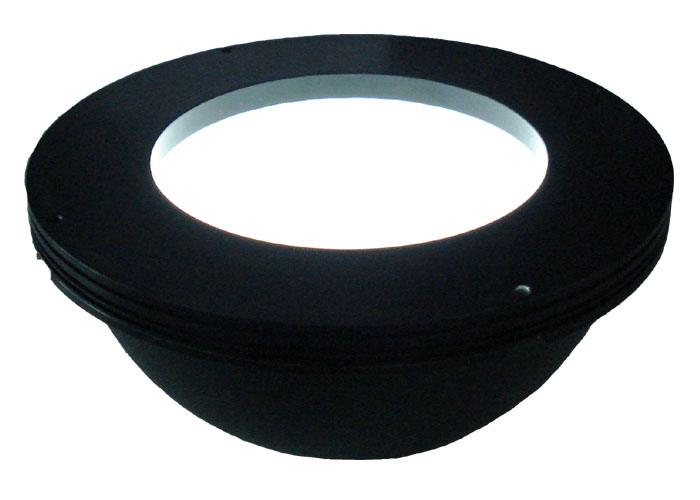

Produktbild
