FHDR-Si426-LA3-W
Artikel-Nr.: 6-2-3426H324-4
LED Low Angle Ring LIght - High Power ***only strobe mode***
6-2-3426H324-4 FHDR-Si426-LA3-W LED Low Angle Ring LIght - High Power ***only strobe mode*** 1 FHDR-Si426-LA3.svg white (xy=0.31,0.32) white.svg 24 96
Technische Daten
| Lichtfarbe/Wellenlänge |
white (xy=0.31,0.32)
|
| Stromstärke | 4 A |
| Leistung | 96 W |
| Spannung | 24 V |
| Illumination Surface: | Ø 404 mm |
| Illumination Inside Dimension: | 386 mm |
| Illumination Outside Diameter: | Ø 466.8x23 mm |
Illumination
| Operating Voltage: | 24 V |
| Current: | 4 A |
| Power Consumption: | 96 W |
| Voltage: | Continuous = 24V Pulsing 48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | RG-2 (Moderate Risk):Caution, do not stare at exposed lamp in operation. May be harmful for eyes |
| IP Rating: | N/A |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
| Illumination Surface: | Ø 404 mm |
| Illumination Inside Dimension: | 386 mm |
| Illumination Outside Diameter: | Ø 466.8x23 mm |
Mechanical
| Housing: | Aluminium |
| Cable: | 600 mm |
| Weight: | Approx. 1.149 g |
LED
| LED Color: |
white (xy=0.31,0.32) |
| LED Package: | SMD |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 112 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes approx. 45°C |
| Cooling Method: | Attached to machine part for better heat dissipation |
| Working Distance: | 0 - 30 mm |

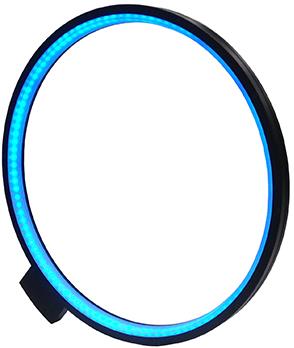

Produktbild
