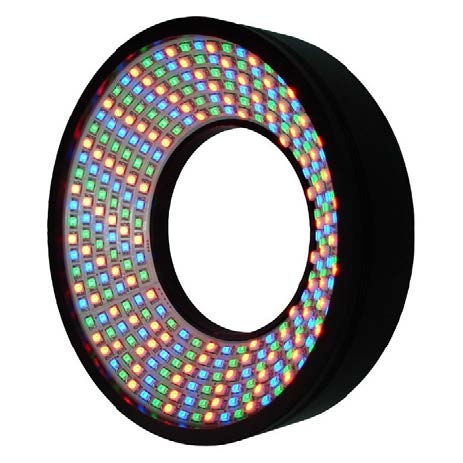

LED Ring Light Direct Angle Multicolor. Each colour separate controlled.
SMD-LEDs separate colours. 100 SMD-LED red (626 nm), 98 SMD-LED green (525 nm), 98 SMD-LED blue (470 nm). Continuous current red 0,4A (9,6 W), green 0,28A (6,72W), blue 0,28A (6,72W). Total power (R24+G+B) 23,04 W
6-2-12024-574FLDR-Si120B-RGBLED Ring Light Direct Angle Multicolor. Each colour separate controlled.
SMD-LEDs separate colours. 100 SMD-LED red (626 nm), 98 SMD-LED green (525 nm), 98 SMD-LED blue (470 nm). Continuous current red 0,4A (9,6 W), green 0,28A (6,72W), blue 0,28A (6,72W). Total power (R24+G+B) 23,04 W1FLDR-Si120B-RGB.svgRGBrgb.svg2423.04
Produkt wurde zur Anfrage hinzugefügt!
Technische Daten
Lichtfarbe/Wellenlänge
RGB
Stromstärke
0.96 A
Leistung
23.04 W
Spannung
24 V
Illumination Surface:
Ø 112 mm
Illumination Inside Dimension:
63.5 mm
Illumination Outside Diameter:
Ø 128x29 mm
Illumination
Operating Voltage:
24 V
Current:
0.96 A
Power Consumption:
23.04 W
Voltage:
Continuous = 24V
Pulsing 24-48V
0-10% Duty Cycle
Ripple Voltage:
≤ Vs ± 5% V
Eye safety:
Exempt Group
IP Rating:
N/A
Connector:
(JST SMR-03V) x3
Connector Pin:
Pin 1: +
Pin 2: n.c.
Pin 3: -
Reverse Battery Protection:
yes
Illumination Surface:
Ø 112 mm
Illumination Inside Dimension:
63.5 mm
Illumination Outside Diameter:
Ø 128x29 mm
Mechanical
Housing:
Aluminium
Cable:
300 mm
Weight:
Approx. 400 g
LED
LED Color:
RGB
LED Package:
SMD-LEDs separate colours
LED Life Span Strobe:
Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature)
LED Life Span Continous:
20,000 hours
Number of LED
Total Number of LED:
296 LED(s)
Usage
Operating Condition:
Temp 0-35 °C, Humidity 20-85%
Operating Temperature:
after 60 minutes approx. 55°C
Cooling Method:
Attached to machine part for better heat dissipation
RGB
