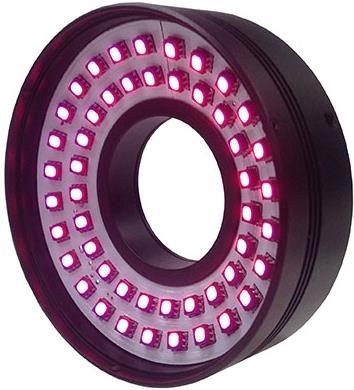

LED Ring Light Direct Angle Multicolor. Each colour separate controlled.
SMD-LEDs separate colours. 50 SMD-LED red (626 nm), 49 SMD-LED green (525 nm), 49 SMD-LED blue (470 nm). Continuous current red 0,1A (2,40W), green 0,14A (3,36W), blue 0,14A (3,36W). Total power (R24+G+B) 9,12 W
6-2-70244-RGBFLDR-Si70B-RGBLED Ring Light Direct Angle Multicolor. Each colour separate controlled.
SMD-LEDs separate colours. 50 SMD-LED red (626 nm), 49 SMD-LED green (525 nm), 49 SMD-LED blue (470 nm). Continuous current red 0,1A (2,40W), green 0,14A (3,36W), blue 0,14A (3,36W). Total power (R24+G+B) 9,12 W1FLDR-Si70B-RGB.svgRGBrgb.svg249.12
Produkt wurde zur Anfrage hinzugefügt!
Technische Daten
Lichtfarbe/Wellenlänge
RGB
Stromstärke
0.38 A
Leistung
9.12 W
Spannung
24 V
Illumination Surface:
Ø 65 mm
Illumination Inside Dimension:
30 mm
Illumination Outside Diameter:
Ø 70x22,5 mm
Illumination
Operating Voltage:
24 V
Current:
0.38 A
Power Consumption:
9.12 W
Voltage:
Continuous = 24V
Pulsing 48V
0-10% Duty Cycle
Ripple Voltage:
≤ Vs ±5% V
Eye safety:
Exempt Group
IP Rating:
N/A
Connector:
JST SMR-03V
Connector Pin:
Pin 1: +
Pin 2: no connection
Pin 3: -
Reverse Battery Protection:
yes
Illumination Surface:
Ø 65 mm
Illumination Inside Dimension:
30 mm
Illumination Outside Diameter:
Ø 70x22,5 mm
Mechanical
Housing:
Aluminium
Cable:
300 mm
Weight:
Approx. 142 g
LED
LED Color:
RGB
LED Package:
SMD-LEDs separate colours
LED Life Span Strobe:
Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature)
RGB
