FLDR-Si74-LA3-IR24
Artikel-Nr.: 6-2-7424-55
LED Low Angle Ring Light
6-2-7424-55 FLDR-Si74-LA3-IR24 LED Low Angle Ring Light 1 FLDR-Si74-LA3.svg IR (850 nm) ir.svg 24 2.4
Technische Daten
| Lichtfarbe/Wellenlänge |
IR (850 nm)
|
| Stromstärke | 0.1 A |
| Leistung | 2.4 W |
| Spannung | 24 V |
| Illumination Surface: | 65 mm |
| Illumination Inside Dimension: | 48 mm |
| Illumination Outside Diameter: | Ø 74x19 mm |
Illumination
| Operating Voltage: | 24 V |
| Current: | 0.1 A |
| Power Consumption: | 2.4 W |
| Voltage: | Continuous = 24V Pulsing 48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | Exempt Group |
| IP Rating: | N/A |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
| Illumination Surface: | 65 mm |
| Illumination Inside Dimension: | 48 mm |
| Illumination Outside Diameter: | Ø 74x19 mm |
Mechanical
| Housing: | Aluminium |
| Cable: | 300 mm |
| Weight: | Approx. 90 g |
LED
| LED Color: |
IR (850 nm) |
| LED Package: | SMD |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 60 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | Approx. 31°C |
| Cooling Method: | Attached to large machine part |
| Working Distance: | 0-30 mm |

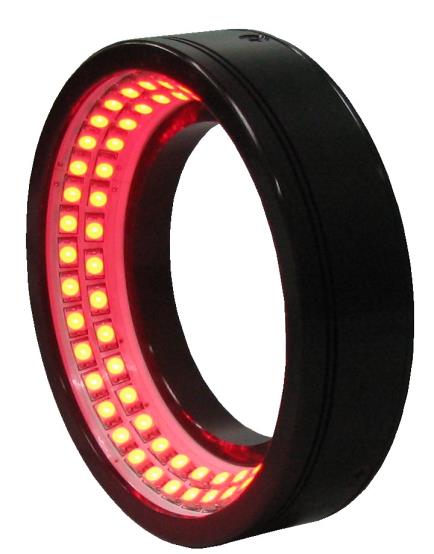

Produktbild
