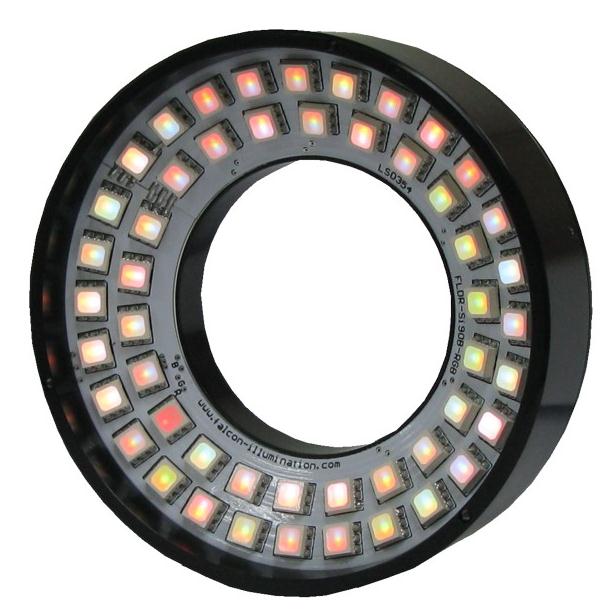

LED Ring Light Direct Angle, Muliticolor. Each colour separate controlled, each SMD-LED in RGB. 50 SMD-LED red (640 nm) or 49 SMD-LED green (525 nm) or 49 SMD-LED blue (470 nm). Continuous current red 0,15A (3,6W), green 0,14A (3,36W), blue 0,14A (3,36W). Total power (R24+G+B) 10,32 W
6-2-9024-RGBFLDR-Si90B-RGBLED Ring Light Direct Angle, Muliticolor. Each colour separate controlled, each SMD-LED in RGB. 50 SMD-LED red (640 nm) or 49 SMD-LED green (525 nm) or 49 SMD-LED blue (470 nm). Continuous current red 0,15A (3,6W), green 0,14A (3,36W), blue 0,14A (3,36W). Total power (R24+G+B) 10,32 W1FLDR-Si90B-RGB.svgRGBrgb.svg249.12
Produkt wurde zur Anfrage hinzugefügt!
Technische Daten
Lichtfarbe/Wellenlänge
RGB
Stromstärke
0.38 A
Leistung
9.12 W
Spannung
24 V
Illumination Surface:
Ø87 mm
Illumination Inside Dimension:
50 mm
Illumination Outside Diameter:
Ø 93,5x24,60 mm
Illumination
Operating Voltage:
24 V
Current:
0.38 A
Power Consumption:
9.12 W
Voltage:
Continuous = 24V
Pulsing 24-48V
0-10% Duty Cycle
Ripple Voltage:
≤ Vs ±5% V
Eye safety:
Exempt Group
IP Rating:
N/A
Connector:
JST SMR-03V
Connector Pin:
Pin 1: +
Pin 2: no connection
Pin 3: -
Reverse Battery Protection:
yes
Illumination Surface:
Ø87 mm
Illumination Inside Dimension:
50 mm
Illumination Outside Diameter:
Ø 93,5x24,60 mm
Mechanical
Housing:
Aluminium
Cable:
450 mm
Weight:
205 g
LED
LED Color:
RGB
LED Package:
Each SMD-LED in RGB
LED Life Span Strobe:
Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature)
LED Life Span Continous:
20,000 hours
Number of LED
Usage
Operating Condition:
Temp 0-35 °C, Humidity 20-85%
Operating Temperature:
after 60 minutes approx. 61°C
Cooling Method:
Attached to machine part for better heat dissipation
RGB
