FLDR-i100-LA3-8-W
Artikel-Nr.: 6-2-100824-0
LED Low Angle Ring Light, 8 segments separate control NPN (sink) type compatible to our power supplies Also available as common cathode (PNP-type)
6-2-100824-0 FLDR-i100-LA3-8-W LED Low Angle Ring Light, 8 segments separate control NPN (sink) type compatible to our power supplies Also available as common cathode (PNP-type) 1 FLDR-i100-LA3-8.svg white (xy=0.31,0.32) white.svg 24 11.52
Technische Daten
| Lichtfarbe/Wellenlänge |
white (xy=0.31,0.32)
|
| Stromstärke | 0.48 A |
| Leistung | 11.52 W |
| Spannung | 24 V |
| Illumination Surface: | Ø 97 mm |
| Illumination Inside Dimension: | 76 mm |
| Illumination Outside Diameter: | Ø 115x22 mm |
Illumination
| Operating Voltage: | 24 V |
| Current: | 0.48 A |
| Power Consumption: | 11.52 W |
| Voltage: | Continuous = 24V Pulsing 48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | Exempt Group |
| IP Rating: | N/A |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
| Illumination Surface: | Ø 97 mm |
| Illumination Inside Dimension: | 76 mm |
| Illumination Outside Diameter: | Ø 115x22 mm |
Mechanical
| Housing: | Aluminium |
| Cable: | 450 mm |
| Weight: | Approx. 220 g |
LED
| LED Color: |
white (xy=0.31,0.32) |
| LED Package: | T1 3mm |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 168 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes approx. 51°C |
| Cooling Method: | Attached to large machine part |
| Working Distance: | 0-30 mm |

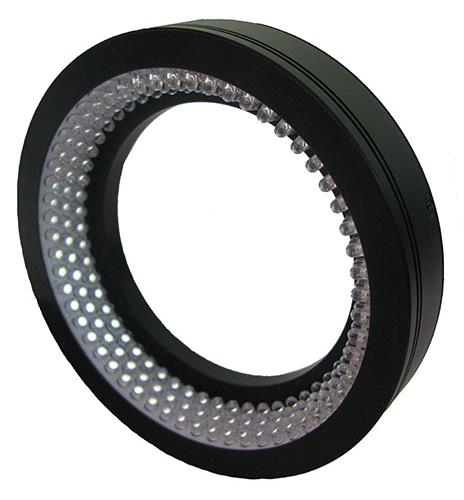

Produktbild
