FLDR-i120B-IR
Artikel-Nr.: 6-2-12012-55
LED Ring Light Direct Angle
6-2-12012-55 FLDR-i120B-IR LED Ring Light Direct Angle 1 FLDR-i120B.svg IR (875 nm) ir.svg 12 20.4
Technische Daten
| Lichtfarbe/Wellenlänge |
IR (875 nm)
|
| Stromstärke | 1.7 A |
| Leistung | 20.4 W |
| Spannung | 12 V |
| Illumination Surface: | Ø 112 mm |
| Illumination Inside Dimension: | 63.5 mm |
| Illumination Outside Diameter: | Ø 128x29 mm |
Illumination
| Operating Voltage: | 12 V |
| Current: | 1.7 A |
| Power Consumption: | 20.4 W |
| Voltage: | Continuous = 12V Pulsing 12-24V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | Exempt Group |
| IP Rating: | N/A |
| Connector: | JST SMR-02V |
| Connector Pin: | Pin 1: + Pin 2: - |
| Reverse Battery Protection: | yes |
| Illumination Surface: | Ø 112 mm |
| Illumination Inside Dimension: | 63.5 mm |
| Illumination Outside Diameter: | Ø 128x29 mm |
Mechanical
| Housing: | Aluminium |
| Cable: | 300 mm |
| Weight: | Approx. 534 g |
LED
| LED Color: |
IR (875 nm) |
| LED Package: | T1 3mm |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 476 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes approx. 65°C |
| Cooling Method: | Attached to machine part for better heat dissipation |
| Working Distance: | 20 - 100 mm |

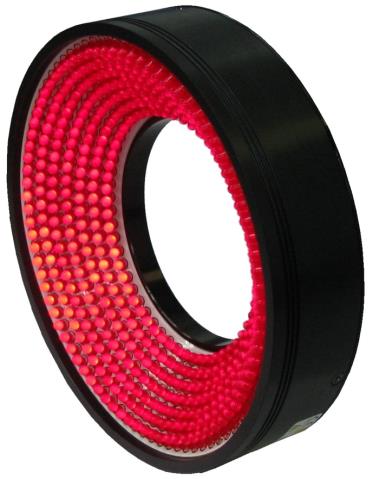

Produktbild
