FLDR-i132-LA3-IP55-R
Artikel-Nr.: 6-2-13215512-5
LED Low Angle Ring Light
6-2-13215512-5 FLDR-i132-LA3-IP55-R LED Low Angle Ring Light 1 FLDR-i132-LA3-IP55.svg red (640 nm) red.svg 12 10.08
Technische Daten
| Lichtfarbe/Wellenlänge |
red (640 nm)
|
| Stromstärke | 0.84 A |
| Leistung | 10.08 W |
| Spannung | 12 V |
| Illumination Surface: | 117 mm |
| Illumination Inside Dimension: | 85 mm |
| Illumination Outside Diameter: | Ø 140x25 mm |
Illumination
| Operating Voltage: | 12 V |
| Current: | 0.84 A |
| Power Consumption: | 10.08 W |
| Voltage: | Continuous = 12V Pulsing 12-24V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | Exempt Group |
| IP Rating: | IP 55 |
| Connector: | JST SMR-02V |
| Connector Pin: | Pin 1: + Pin 2: - |
| Reverse Battery Protection: | yes |
| Illumination Surface: | 117 mm |
| Illumination Inside Dimension: | 85 mm |
| Illumination Outside Diameter: | Ø 140x25 mm |
Mechanical
| Housing: | Aluminium |
| Cable: | 1000 mm |
| Weight: | Approx. 450 g |
LED
| LED Color: |
red (640 nm) |
| LED Package: | T1 3mm |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 252 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | Approx. 42°C |
| Cooling Method: | Attached to machine part for better heat dissipation |
| Working Distance: | 0-20 mm |

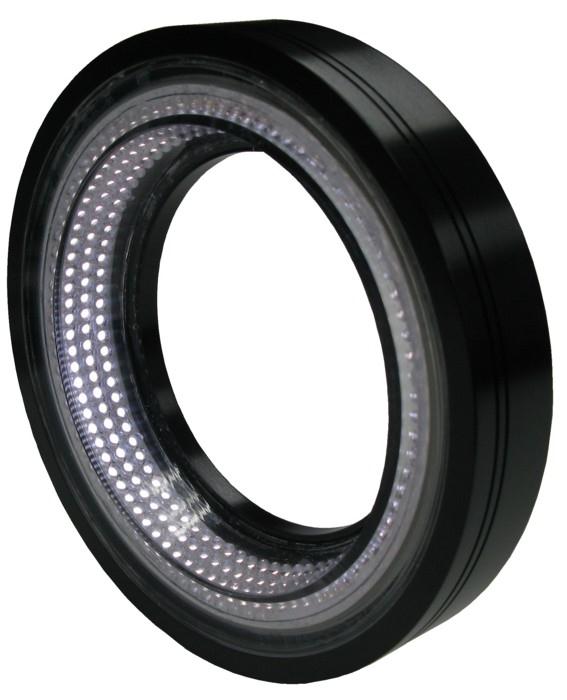

Produktbild
