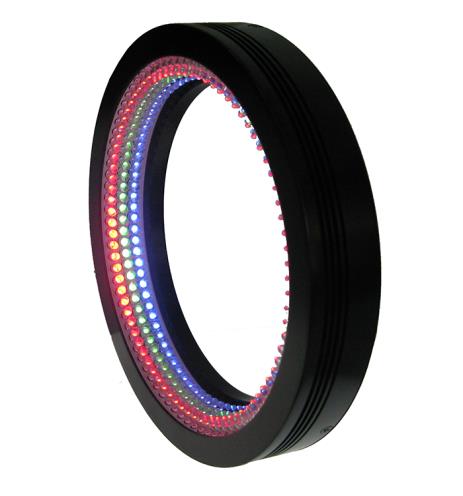

LED Low Angle Ring Light Multicolor. Each colour separate controlled. LED's separate colours. Superred (626 nm) 84 LED, green (525 nm) 84 LED, blue (470 nm) 84 LED
Total LED: 252. continuous current superred 0,14A (3,36W), green 0,24 A (5,76W), blue 0,24 A (5,76W). Total power (SR24+G+B): 14,88 W
6-2-1321S24-574FLDR-i132-LA3-RGBLED Low Angle Ring Light Multicolor. Each colour separate controlled. LED's separate colours. Superred (626 nm) 84 LED, green (525 nm) 84 LED, blue (470 nm) 84 LED
Total LED: 252. continuous current superred 0,14A (3,36W), green 0,24 A (5,76W), blue 0,24 A (5,76W). Total power (SR24+G+B): 14,88 W
1FLDR-i132-LA3-RGB.svgRGBrgb.svg2414.88
Produkt wurde zur Anfrage hinzugefügt!
Technische Daten
Lichtfarbe/Wellenlänge
RGB
Stromstärke
0.62 A
Leistung
14.88 W
Spannung
24 V
Illumination Surface:
Ø113 mm
Illumination Inside Dimension:
98 mm
Illumination Outside Diameter:
Ø 132x22 mm
Illumination
Operating Voltage:
24 V
Current:
0.62 A
Power Consumption:
14.88 W
Voltage:
Continuous = 24V
Pulsing 24-48V
0-10% Duty Cycle
Ripple Voltage:
≤ Vs ±5% V
Eye safety:
Exempt Group
IP Rating:
N/A
Connector:
JST SMR-03V
Connector Pin:
Pin 1: +
Pin 2: no connection
Pin 3: -
Reverse Battery Protection:
yes
Illumination Surface:
Ø113 mm
Illumination Inside Dimension:
98 mm
Illumination Outside Diameter:
Ø 132x22 mm
Mechanical
Housing:
Aluminium
Cable:
450 mm
Weight:
Approx. 250 g
LED
LED Color:
RGB
LED Package:
T1 3mm
LED Life Span Strobe:
Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature)
LED Life Span Continous:
20,000 hours
Number of LED
Total Number of LED:
252 LED(s)
Usage
Operating Condition:
Temp 0-35 °C, Humidity 20-85%
Operating Temperature:
after 60 minutes approx. 57°C
Cooling Method:
Attached to machine part for better heat dissipation
RGB
