FLDR-i170-LA3-HC180-SR24
Artikel-Nr.: 6-2-1701S24-180-5
LED Low Angle Ring Light, half model (180 degree)
6-2-1701S24-180-5 FLDR-i170-LA3-HC180-SR24 LED Low Angle Ring Light, half model (180 degree) 1 FLDR-i170-LA3-HC180.svg SR (626 nm) sr.svg 24 7.2
Technische Daten
| Lichtfarbe/Wellenlänge |
SR (626 nm)
|
| Stromstärke | 0.3 A |
| Leistung | 7.2 W |
| Spannung | 24 V |
| Illumination Surface: | semi Ø126 mm |
| Illumination Inside Dimension: | 118 mm |
| Illumination Outside Diameter: | Ø 172x23 mm |
Illumination
| Operating Voltage: | 24 V |
| Current: | 0.3 A |
| Power Consumption: | 7.2 W |
| Voltage: | Continuous = 24V Pulsing 24-48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | Exempt Group |
| IP Rating: | N/A |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
| Illumination Surface: | semi Ø126 mm |
| Illumination Inside Dimension: | 118 mm |
| Illumination Outside Diameter: | Ø 172x23 mm |
Mechanical
| Housing: | Aluminium |
| Cable: | 300 mm |
| Weight: | 180 g |
LED
| LED Color: |
SR (626 nm) |
| LED Package: | T1 3mm |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity) at 25°C |
| LED Life Span Continous: | 20,000 hours (drop to 50% intensity) at 25°C |
| Number of LED | |
|---|---|
| Total Number of LED: | 180 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes approx. 50 °C |
| Cooling Method: | Attached to machine part for better heat dissipation |
| Working Distance: | 5-100 mm |

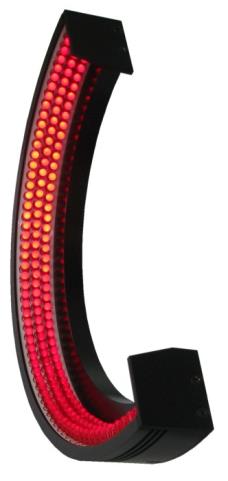

Produktbild
