FLDR-i90B-IP54-SR24
Artikel-Nr.: 6-2-90S5424-5
LED Ring Light Direct Angle
6-2-90S5424-5 FLDR-i90B-IP54-SR24 LED Ring Light Direct Angle 1 FLDR-i90B-IP54.svg SR (626 nm) sr.svg 24 9.6
Technische Daten
| Lichtfarbe/Wellenlänge |
SR (626 nm)
|
| Stromstärke | 0.4 A |
| Leistung | 9.6 W |
| Spannung | 24 V |
| Illumination Surface: | Ø87 mm |
| Illumination Inside Dimension: | 46 mm |
| Illumination Outside Diameter: | Ø 94x24,60 mm |
Illumination
| Operating Voltage: | 24 V |
| Current: | 0.4 A |
| Power Consumption: | 9.6 W |
| Voltage: | Continuous = 24V Pulsing 48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | Exempt Group |
| IP Rating: | IP 54 |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
| Illumination Surface: | Ø87 mm |
| Illumination Inside Dimension: | 46 mm |
| Illumination Outside Diameter: | Ø 94x24,60 mm |
Mechanical
| Housing: | Aluminium |
| Cable: | 300 mm |
| Weight: | Approx. 256 g |
LED
| LED Color: |
SR (626 nm) |
| LED Package: | T1 3mm |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 200 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes approx. 54°C |
| Cooling Method: | Attached to large machine part |
| Working Distance: | 50-100 mm |

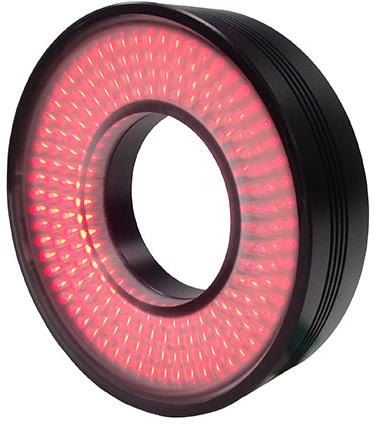

Produktbild
