FLDR-i90B-UV24
Artikel-Nr.: 6-2-9024-00
LED Ring Light Direct Angle UV375 (375 nm by default) and UV400 (400 nm) possible
6-2-9024-00 FLDR-i90B-UV24 LED Ring Light Direct Angle UV375 (375 nm by default) and UV400 (400 nm) possible 1 FLDR-i90B-UV.svg UV (375 nm) uv.svg 24 5.76
Technische Daten
| Lichtfarbe/Wellenlänge |
UV (375 nm)
|
| Stromstärke | 0.24 A |
| Leistung | 5.76 W |
| Spannung | 24 V |
| Illumination Surface: | Ø86 mm |
| Illumination Inside Dimension: | 54 mm |
| Illumination Outside Diameter: | Ø 90x19,50 mm |
Illumination
| Operating Voltage: | 24 V |
| Current: | 0.24 A |
| Power Consumption: | 5.76 W |
| Voltage: | Continuous = 24V Pulsing 24-48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ± 5% V |
| Eye safety: | RG-3 (High Risk): Caution. Do not look at exposed lamp in operation. Eye injury can result. |
| IP Rating: | N/A |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
| Illumination Surface: | Ø86 mm |
| Illumination Inside Dimension: | 54 mm |
| Illumination Outside Diameter: | Ø 90x19,50 mm |
Mechanical
| Housing: | Aluminium |
| Cable: | 300 mm |
| Weight: | Approx. 130 g |
LED
| LED Color: |
UV (375 nm) |
| LED Package: | T1 3/4 5mm |
| LED Life Span Strobe: | Est. >10,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 5,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 72 LED(s) |
| LED per Group: | 6 LED(s) |
| Number of Group: | 12 Group(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes approx. 50°C |
| Cooling Method: | Attached to machine part for better heat dissipation |
| Working Distance: | 10-100 mm |

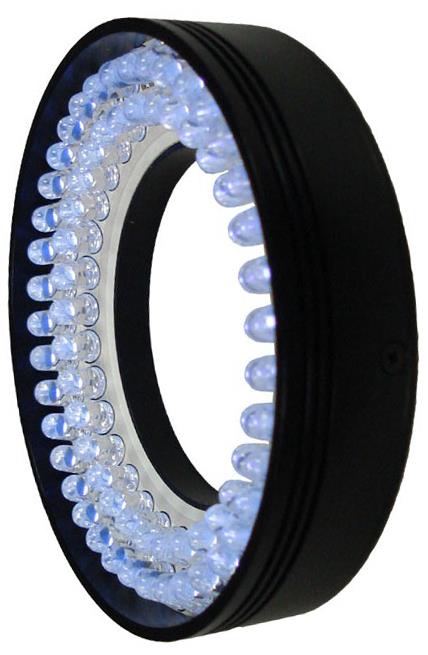

Produktbild
