FLFL-Si90x40N-IR24
Artikel-Nr.: 6-3-904024-55
LED Diffuse Back Light Holes marginal
6-3-904024-55 FLFL-Si90x40N-IR24 LED Diffuse Back Light Holes marginal 1 FLFL-Si90x40N.svg IR (850 nm) ir.svg 24 2.4
Technische Daten
| Lichtfarbe/Wellenlänge |
IR (850 nm)
|
| Stromstärke | 0.1 A |
| Leistung | 2.4 W |
| Spannung | 24 V |
Illumination
| Operating Voltage: | 24 V |
| Current: | 0.1 A |
| Power Consumption: | 2.4 W |
| Voltage: | Continuous = 24V Pulsing 24-48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | Exempt Group |
| IP Rating: | N/A |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
Mechanical
| Housing: | Aluminium |
| Cable: | 300 mm |
| Weight: | Approx. 130 g |
LED
| LED Color: |
IR (850 nm) |
| LED Package: | SMD |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 56 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes approx. 40°C |
| Cooling Method: | Attached to machine part for better heat dissipation |
| Working Distance: | 10-100 |

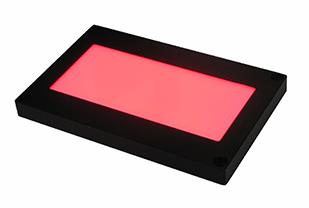

Produktbild
