FFPR-Si70-4-W
Artikel-Nr.: 6-11-70424-0
LED Low Angle Ring Diffuse Light 4 segment separat control
6-11-70424-0 FFPR-Si70-4-W LED Low Angle Ring Diffuse Light 4 segment separat control 1 FFPR-Si70-4.svg white (xy=0.31,0.32) white.svg 24 3.84
Technische Daten
| Lichtfarbe/Wellenlänge |
white (xy=0.31,0.32)
|
| Stromstärke | 0.16 A |
| Leistung | 3.84 W |
| Spannung | 24 V |
| Illumination Surface: | 64 mm |
| Illumination Inside Dimension: | 40 mm |
| Illumination Outside Diameter: | 75x40x40 mm |
Illumination
| Operating Voltage: | 24 V |
| Current: | 0.16 A |
| Power Consumption: | 3.84 W |
| Voltage: | Continuous = 24V Pulsing 48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | Exempt Group |
| IP Rating: | N/A |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
| Illumination Surface: | 64 mm |
| Illumination Inside Dimension: | 40 mm |
| Illumination Outside Diameter: | 75x40x40 mm |
Mechanical
| Housing: | Aluminium |
| Cable: | 450 mm |
| Weight: | 226 g |
LED
| LED Color: |
white (xy=0.31,0.32) |
| LED Package: | SMD |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 56 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes approx. 36°C |
| Cooling Method: | Attached to large machine part |
| Working Distance: | 0-30 mm |

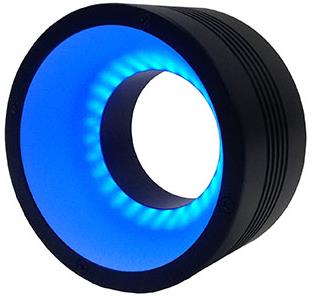

Produktbild
