FHPR-Si100-IP67-G
Artikel-Nr.: 6-11-100324-7
LED High Brightness Low Angle Ring Diffuse Light green Vf = 21 V (typical Lighting Forward voltage for zero internal resistor value) operating temperature after 60 minutes without compress air cooling 75°C
6-11-100324-7 FHPR-Si100-IP67-G LED High Brightness Low Angle Ring Diffuse Light green Vf = 21 V (typical Lighting Forward voltage for zero internal resistor value) operating temperature after 60 minutes without compress air cooling 75°C 1 FHPR-Si100-IP67.svg green (525 nm) green.svg 24 24
Technische Daten
| Lichtfarbe/Wellenlänge |
green (525 nm)
|
| Stromstärke | 1 A |
| Leistung | 24 W |
| Spannung | 24 V |
| Illumination Surface: | 94 mm |
| Illumination Inside Dimension: | 64 mm |
| Illumination Outside Diameter: | 115x45 mm |
Illumination
| Operating Voltage: | 24 V |
| Current: | 1 A |
| Power Consumption: | 24 W |
| Voltage: | Continuous = 24V Pulsing 48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | RG-2 (Moderate Risk):Caution, do not stare at exposed lamp in operation. May be harmful for eyes |
| IP Rating: | IP 67 |
| Connector: | Pico M8 (male) |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - Pin 4: no connection |
| Reverse Battery Protection: | yes |
| Illumination Surface: | 94 mm |
| Illumination Inside Dimension: | 64 mm |
| Illumination Outside Diameter: | 115x45 mm |
Mechanical
| Housing: | Aluminium |
| Cable: | mm |
| Weight: | Approx. 515 g |
LED
| LED Color: |
green (525 nm) |
| LED Package: | High Power SMD |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 28 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes with compress air cooling 60°C |
| Cooling Method: | Attached to large machine part |
| Working Distance: | 50 - 1000 |

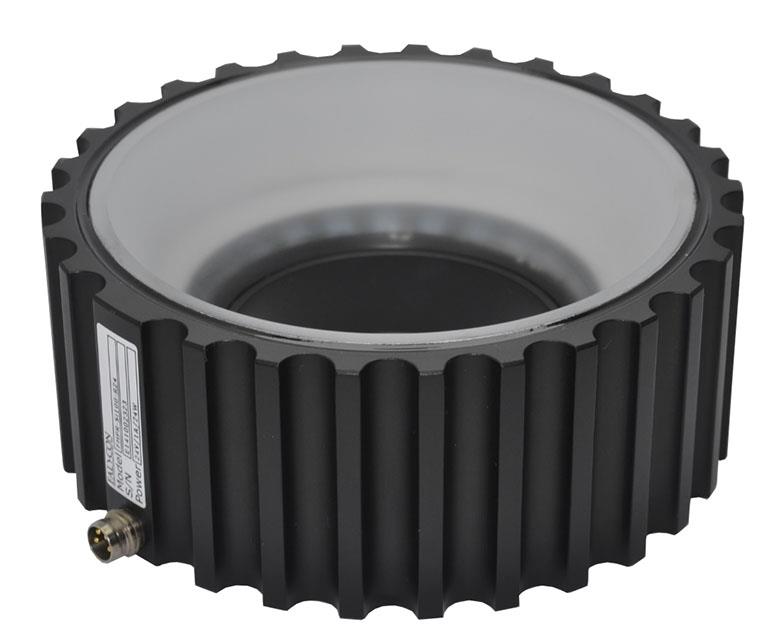

Produktbild
