FHPR-Si70-W
Artikel-Nr.: 6-11-70H24-0
LED High Brightness Low Angle Ring Diffuse Light Vf = 21 V (typical Lighting Forward voltage for zero internal resistor value)
6-11-70H24-0 FHPR-Si70-W LED High Brightness Low Angle Ring Diffuse Light Vf = 21 V (typical Lighting Forward voltage for zero internal resistor value) 1 FHPR-Si50.svg white (xy=0.31,0.32) white.svg 24 25.2
Technische Daten
| Lichtfarbe/Wellenlänge |
white (xy=0.31,0.32)
|
| Stromstärke | 1.05 A |
| Leistung | 25.2 W |
| Spannung | 24 V |
| Illumination Surface: | 64 mm |
| Illumination Inside Dimension: | 23 mm |
| Illumination Outside Diameter: | 60x40x40 mm |
Illumination
| Operating Voltage: | 24 V |
| Current: | 1.05 A |
| Power Consumption: | 25.2 W |
| Voltage: | Continuous = 12V Pulsing 12-24V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | RG-2 (Moderate Risk):Caution, do not stare at exposed lamp in operation. May be harmful for eyes |
| IP Rating: | IP 50IP 40 |
| Connector: | JST SMR-02V |
| Connector Pin: | Pin 1: + Pin 2: - |
| Reverse Battery Protection: | yes |
| Illumination Surface: | 64 mm |
| Illumination Inside Dimension: | 23 mm |
| Illumination Outside Diameter: | 60x40x40 mm |
Mechanical
| Housing: | Aluminium |
| Cable: | 300 mm |
| Weight: | Approx. 165 g |
LED
| LED Color: |
white (xy=0.31,0.32) |
| LED Package: | High Power SMD |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 21 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | |
| Cooling Method: | Attached to machine part for better heat dissipation |
| Working Distance: | 0-30 mm |

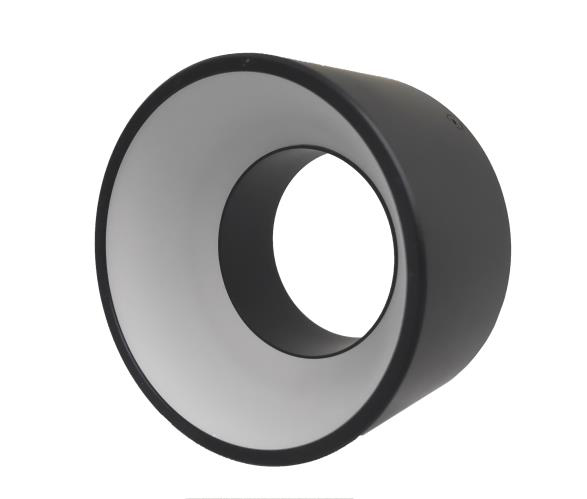

Produktbild
