FLDR-Si130-LA1-HC180-R
Artikel-Nr.: 6-2-1302212-180-5
LED Low Angle Ring Light, half model (180 degree)
6-2-1302212-180-5 FLDR-Si130-LA1-HC180-R LED Low Angle Ring Light, half model (180 degree) 1 FLDR-Si130-LA1-HC180.svg red (626 nm) red.svg 12 5.76
Technische Daten
| Lichtfarbe/Wellenlänge |
red (626 nm)
|
| Stromstärke | 0.48 A |
| Leistung | 5.76 W |
| Spannung | 12 V |
Illumination
| Operating Voltage: | 12 V |
| Current: | 0.48 A |
| Power Consumption: | 5.76 W |
| Voltage: | Continuous = 12V Pulsing 12-24V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | Exempt Group |
| IP Rating: | N/A |
| Connector: | JST SMR-02V |
| Connector Pin: | Pin 1: + Pin 2: - |
| Reverse Battery Protection: | yes |
Mechanical
| Housing: | Aluminium |
| Cable: | 300 mm |
| Weight: | approx. 90 g |
LED
| LED Color: |
red (626 nm) |
| LED Package: | SMD |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity) at 25°C |
| LED Life Span Continous: | 20,000 hours (drop to 50% intensity) at 25°C |
| Number of LED | |
|---|---|
| Total Number of LED: | 48 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes approx. 40°C |
| Cooling Method: | Attached to large machine part |
| Working Distance: | 5-100 mm |

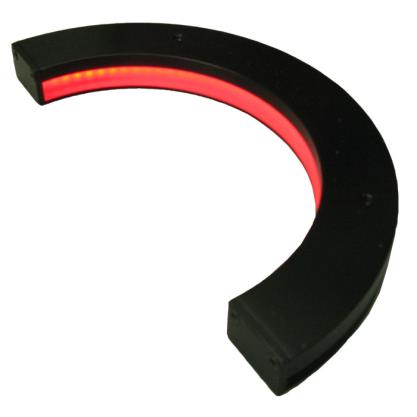

Produktbild
