FLDR-i100-LA1-UV400
Artikel-Nr.: 6-2-10024-00-400
LED Low Angle Ring Light
6-2-10024-00-400 FLDR-i100-LA1-UV400 LED Low Angle Ring Light 1 FLDR-i100-LA1-UV400.svg UV (400 nm) uv.svg 24 2.88
Technische Daten
| Lichtfarbe/Wellenlänge |
UV (400 nm)
|
| Stromstärke | 0.12 A |
| Leistung | 2.88 W |
| Spannung | 24 V |
| Illumination Surface: | Ø 65 mm |
| Illumination Inside Dimension: | 65 mm |
| Illumination Outside Diameter: | Ø 105x13 mm |
Illumination
| Operating Voltage: | 24 V |
| Current: | 0.12 A |
| Power Consumption: | 2.88 W |
| Voltage: | Continuous = 24V Pulsing 48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | RG-3 (High Risk): Caution. Do not look at exposed lamp in operation. Eye injury can result. |
| IP Rating: | N/A |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
| Illumination Surface: | Ø 65 mm |
| Illumination Inside Dimension: | 65 mm |
| Illumination Outside Diameter: | Ø 105x13 mm |
Mechanical
| Housing: | Aluminium |
| Cable: | 300 mm |
| Weight: | Approx. 146 g |
LED
| LED Color: |
UV (400 nm) |
| LED Package: | T1 5mm |
| LED Life Span Strobe: | Est. >10,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 5,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 36 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 40 minutes approx. 39°C |
| Cooling Method: | Attached to large machine part |
| Working Distance: | 30 - 200 mm |

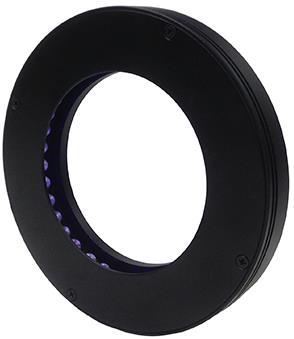

Produktbild
