FLFQ-Si245x200-C90-B
Artikel-Nr.: 6-7-200245-7
LED High Brightness Diffuse Front Light - High Power SMD LEDs rectangle shaped Front Light with aperture for camera
6-7-200245-7 FLFQ-Si245x200-C90-B LED High Brightness Diffuse Front Light - High Power SMD LEDs rectangle shaped Front Light with aperture for camera 1 FLFQ-Si245x200-C90.svg blue (470 nm) blue.svg 24 23.04
Technische Daten
| Lichtfarbe/Wellenlänge |
blue (470 nm)
|
| Stromstärke | 0.96 A |
| Leistung | 23.04 W |
| Spannung | 24 V |
Illumination
| Operating Voltage: | 24 V |
| Current: | 0.96 A |
| Power Consumption: | 23.04 W |
| Voltage: | Continuous = 24V Pulsing 48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | Exempt Group |
| IP Rating: | IP 50 |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
Mechanical
| Housing: | Aluminium |
| Cable: | 600 mm |
| Weight: | 2200g |
LED
| LED Color: |
blue (470 nm) |
| LED Package: | SMD |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 336 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | Approx. 44 °C |
| Cooling Method: | Attached to large machine part |
| Working Distance: | 20-200 mm |

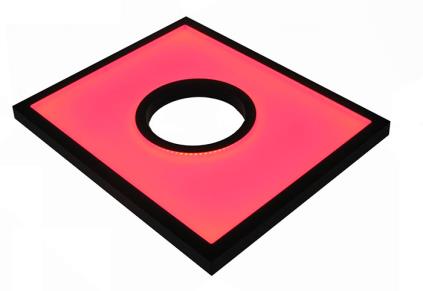

Produktbild
