FLFR-Si200-4-B
Artikel-Nr.: 6-7-200424-4
LED Diffuse Front Light 4 segments separate control
6-7-200424-4 FLFR-Si200-4-B LED Diffuse Front Light 4 segments separate control 1 FLFR-Si200-4.svg blue (470 nm) blue.svg 24 11.52
Technische Daten
| Lichtfarbe/Wellenlänge |
blue (470 nm)
|
| Stromstärke | 0.48 A |
| Leistung | 11.52 W |
| Spannung | 24 V |
| Illumination Surface: | Ø195 mm mm |
| Illumination Inside Dimension: | 70 mm |
| Illumination Outside Diameter: | Ø220xØ70x16 mm |
Illumination
| Operating Voltage: | 24 V |
| Current: | 0.48 A |
| Power Consumption: | 11.52 W |
| Voltage: | Continuous = 24V Pulsing 48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | Exempt Group |
| IP Rating: | N/A |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
| Illumination Surface: | Ø195 mm mm |
| Illumination Inside Dimension: | 70 mm |
| Illumination Outside Diameter: | Ø220xØ70x16 mm |
Mechanical
| Housing: | Aluminium |
| Cable: | 750 mm |
| Weight: | Approx. 910 g |
LED
| LED Color: |
blue (470 nm) |
| LED Package: | SMD |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 168 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes approx. 34 °C |
| Cooling Method: | Attached to large machine part |
| Working Distance: | 5 - 100 mm |

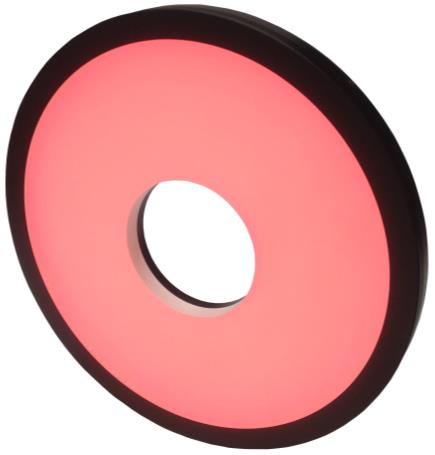

Produktbild
