FLFR-Si350-W
Artikel-Nr.: 6-7-35024-0
LED Diffuse Front Light
6-7-35024-0 FLFR-Si350-W LED Diffuse Front Light 1 FLFR-Si350.svg white (xy=0.31,0.32) white.svg 24 25.92
Technische Daten
| Lichtfarbe/Wellenlänge |
white (xy=0.31,0.32)
|
| Stromstärke | 1.08 A |
| Leistung | 25.92 W |
| Spannung | 24 V |
| Illumination Surface: | Ø322 mm |
| Illumination Inside Dimension: | 115 mm |
| Illumination Outside Diameter: | Ø350xØ115x16 mm |
Illumination
| Operating Voltage: | 24 V |
| Current: | 1.08 A |
| Power Consumption: | 25.92 W |
| Voltage: | Continuous = 24V Pulsing 24-48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | Exempt Group |
| IP Rating: | IP 50 |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
| Illumination Surface: | Ø322 mm |
| Illumination Inside Dimension: | 115 mm |
| Illumination Outside Diameter: | Ø350xØ115x16 mm |
Mechanical
| Housing: | Aluminium |
| Cable: | 600 mm |
| Weight: | 2200 g |
LED
| LED Color: |
white (xy=0.31,0.32) |
| LED Package: | SMD |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 378 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes approx. 40°C |
| Cooling Method: | Attached to machine part for better heat dissipation |
| Working Distance: | 20-200 mm |

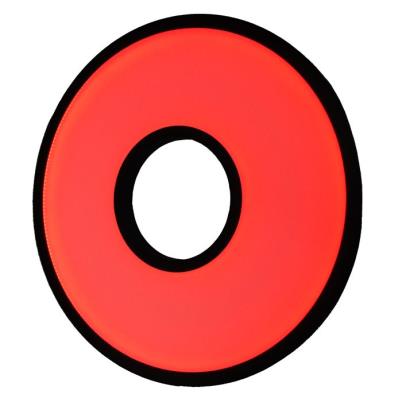

Produktbild
