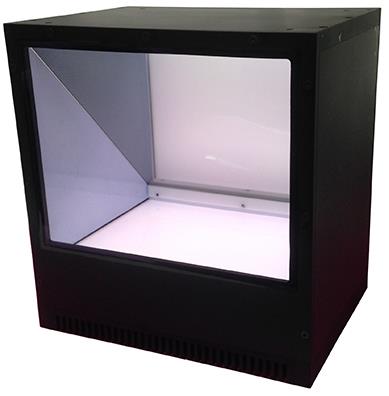

FLFV-Si200x150-RGB

Artikel-Nr.: 6-10-20015024-RGB

LED Coaxial Light, Muliticolor. Each colour separate controlled, each SMD-LED in RGB.330 SMD-LED red (626 nm) or 336 SMD-LED green (525 nm) or 336 SMD-LED blue (470 nm). Continuous current red 0,66A (18,84W), green 0,96A (23,04W), blue 0,96A (23,04W). Total power (R24+G+B) 61,92 W

6-10-20015024-RGB FLFV-Si200x150-RGB LED Coaxial Light, Muliticolor. Each colour separate controlled, each SMD-LED in RGB.330 SMD-LED red (626 nm) or 336 SMD-LED green (525 nm) or 336 SMD-LED blue (470 nm). Continuous current red 0,66A (18,84W), green 0,96A (23,04W), blue 0,96A (23,04W). Total power (R24+G+B) 61,92 W 1 FLFV-Si200x150-RGB.svg RGB rgb.svg 24 61.92

Technische Daten

Lichtfarbe/Wellenlänge	RGB
Stromstärke	1.98 A
Leistung	61.92 W
Spannung	24 V

Illumination

Operating Voltage:	24 V
Current:	1.98 A
Power Consumption:	61.92 W
Voltage:	Continuous = 24V Pulsing 48V 0-10% Duty Cycle
Ripple Voltage:	≤ Vs ±5% V
Eye safety:	Exempt Group
IP Rating:	IP 30
Connector:	JST SMR-03V
Connector Pin:	Pin 1: + Pin 2: no connection Pin 3: -
Reverse Battery Protection:	yes

Mechanical

Housing:	Aluminium
Cable:	750 mm
Weight:	Approx. 6172 g

LED

Number of LED
LED Color:	RGB
LED Package:	Each SMD-LED in RGB
LED Life Span Strobe:	Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature)
LED Life Span Continous:	20,000 hours
Total Number of LED:	336 LED(s)

Usage

Operating Condition:	Temp 0-35 °C, Humidity 20-85%
Operating Temperature:	after 60 minutes approx. 52°C
Cooling Method:	Attached to large machine part
Working Distance:	0 - 30 mm
